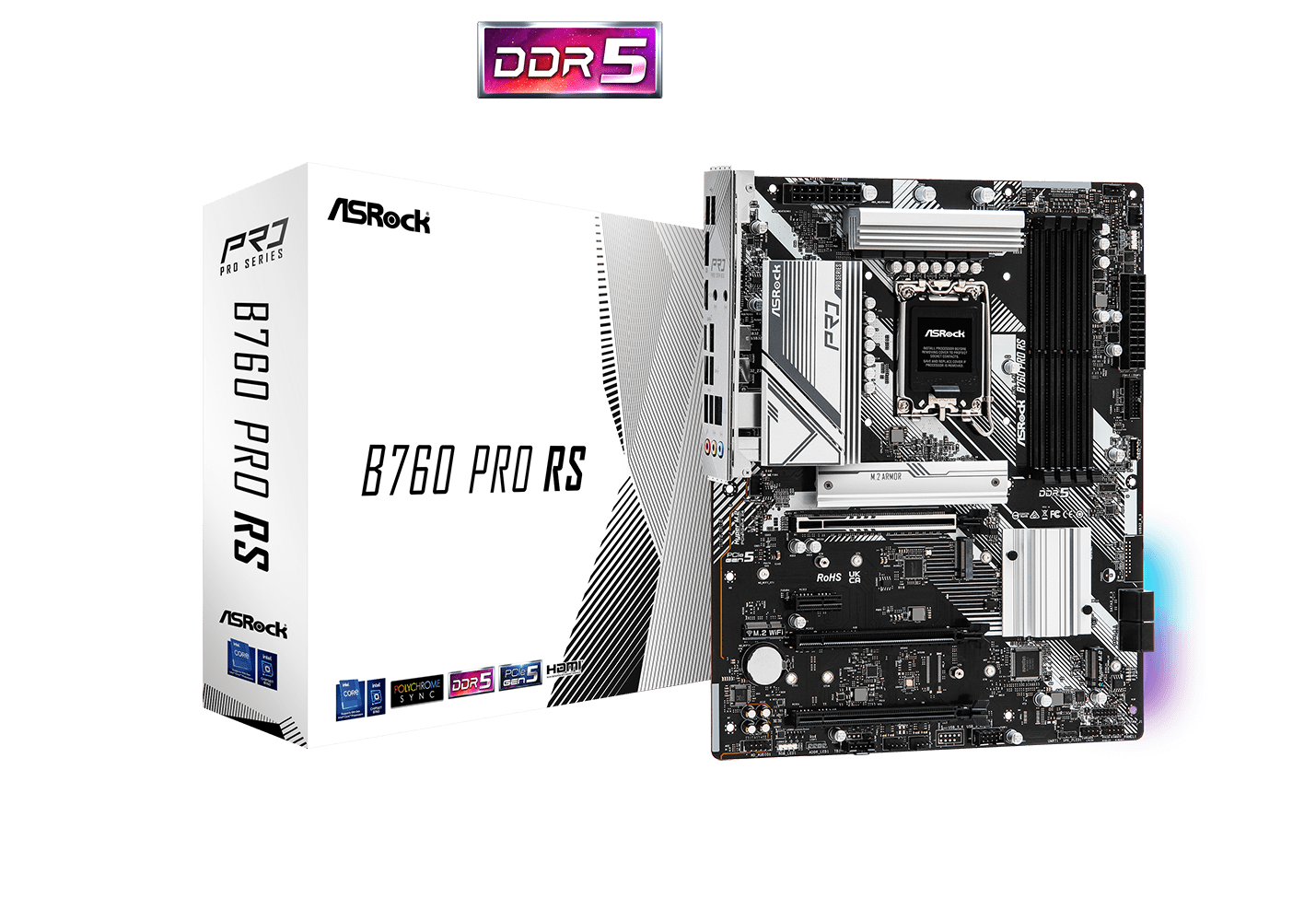

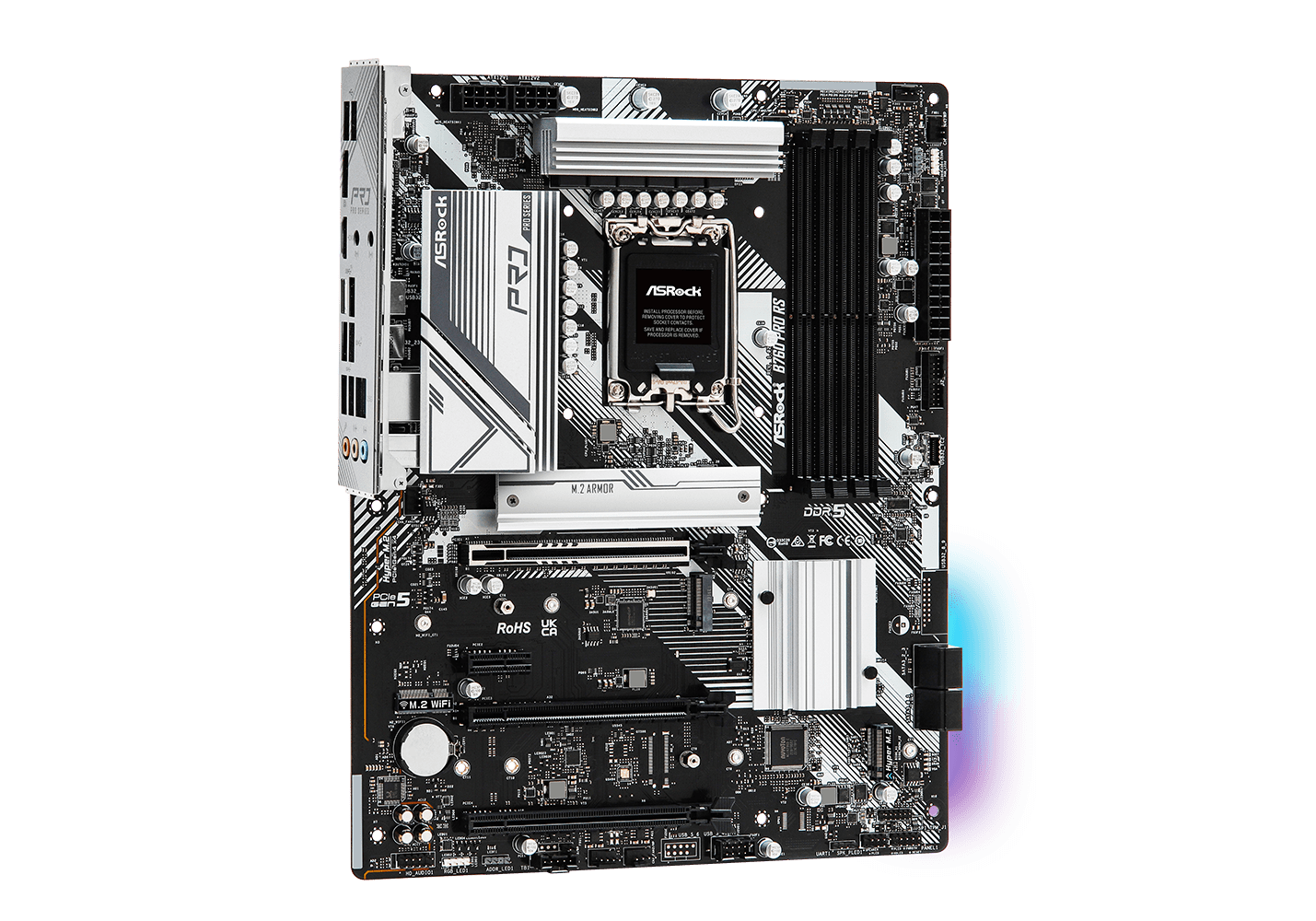

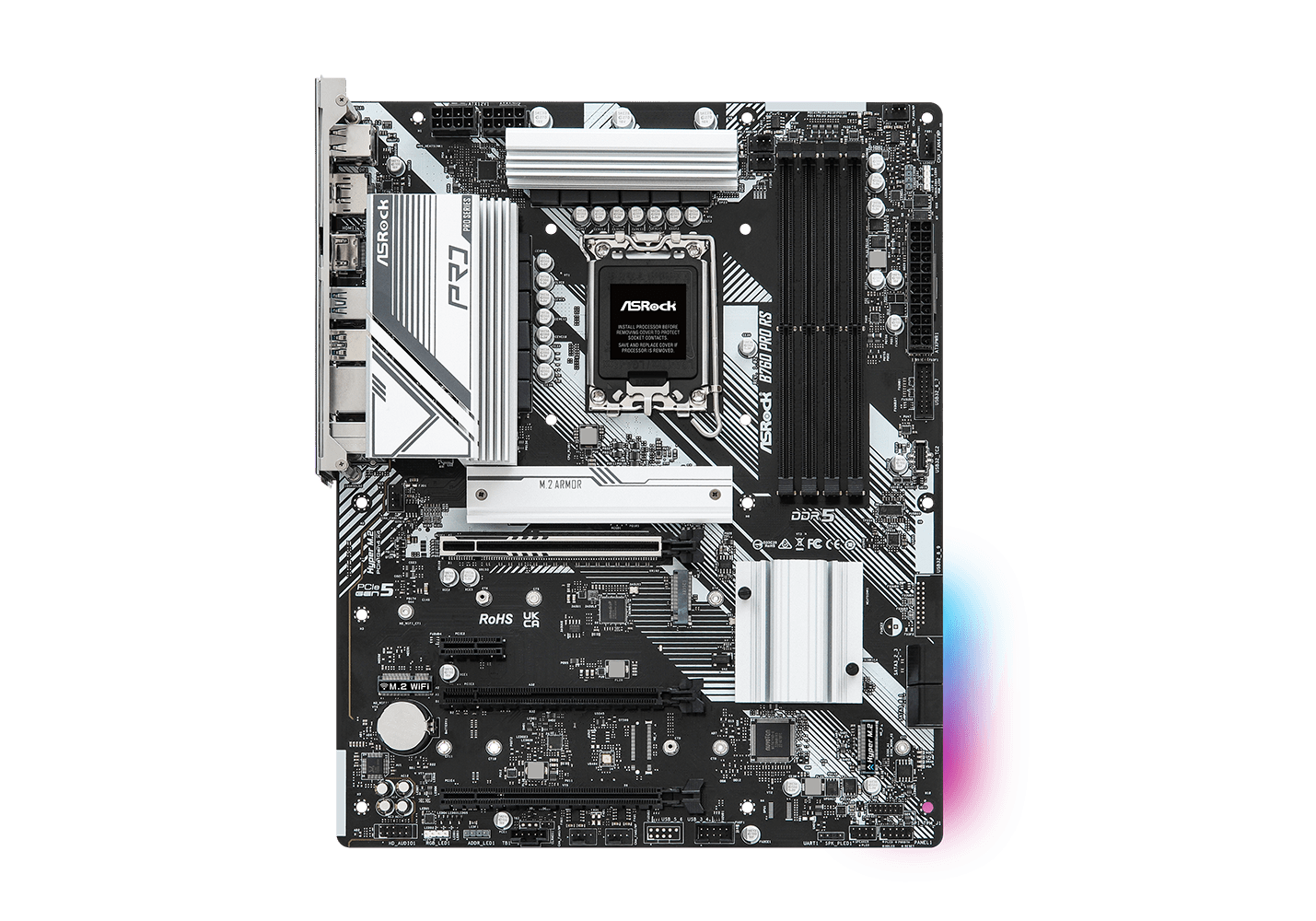

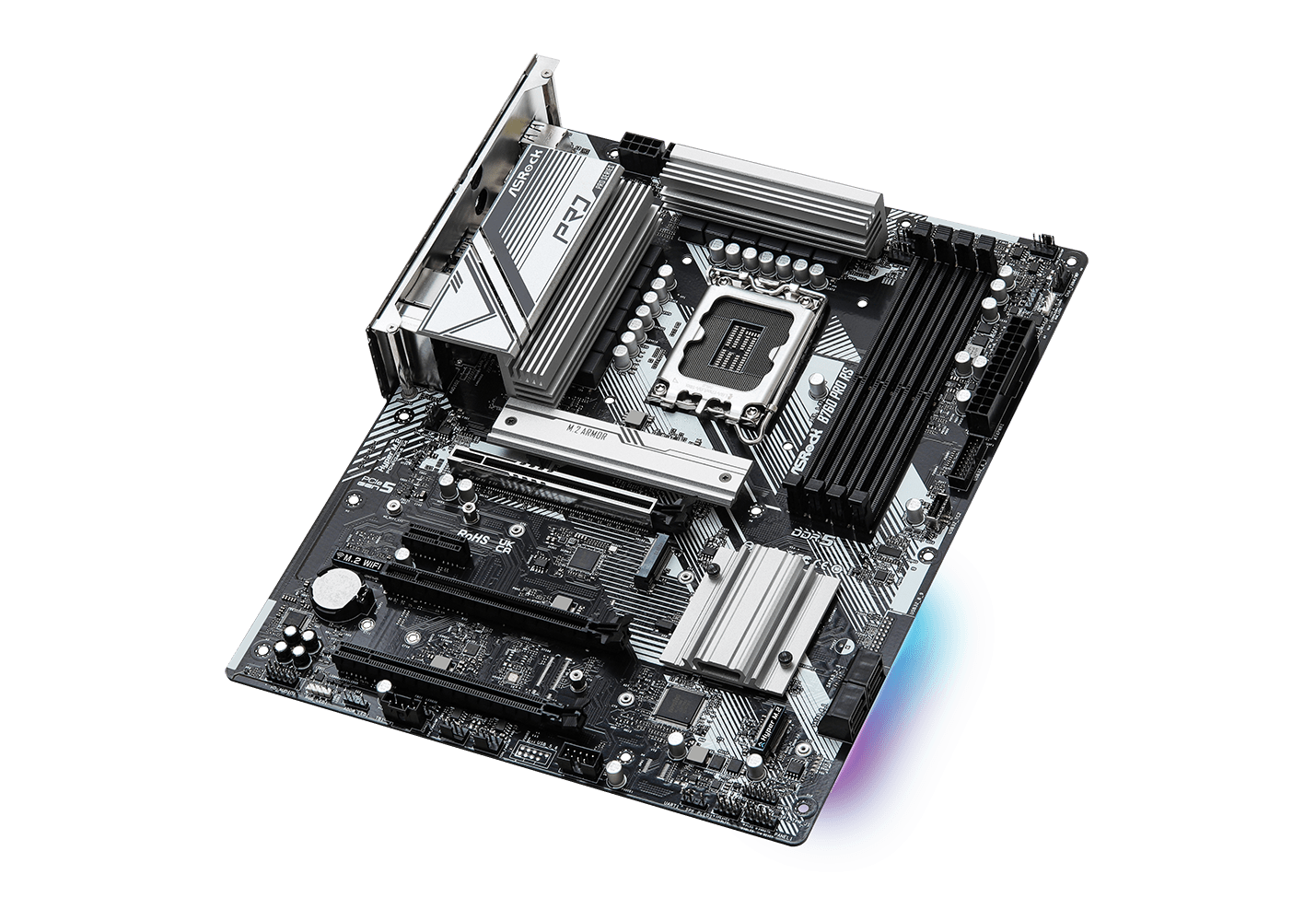

Motherboard ASRock B760 Pro RS DDR5
ASR-MB-B760-PRO-RS
Hover on image to enlarge
Delivery
Payment options
Our advantages
12 months warrantyGuarantee for all purchased goods in our online store is 12 months
SMS notificationYou receive SMS messages about your delivery.
Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer and other.
Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!
Description
| Manufacturer | ASROCK |
|---|---|
| Model | B760 PRO RS |
| Reference number | ASR-MB-B760-PRO-RS |
| Barcode | 4710483942044 |
| Warranty | 36 |
| CPU Socket | 1700 |
| Chipset | Intel B760 |
| CPU supports | 12th Generation Intel |
| CPU supports | 13th Generation Intel |
| CPU supports | 14th Generation Intel |
| Memory Standard | DDR5 |
| Maximum Memory Supported | 192 GB |
| Number of Memory Slots | 4 |
| Frequency Memory | 7200(OC) MHz |
| Support Dualchannel | Yes |
| Integrated Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Integrated Audio | Nahimic Audio |
| Integrated LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Integrated Wi-Fi | No |
| PCI-E x16 | 1 x PCIe 4.0/3.0 x16 |
| PCI-E x16 | 1 x PCIe 5.0 x16 |
| PCI-E x1 | 1 |
| Interface Serial ATA | 4 x SATA3 6.0 Gb/s |
| M2 socket | 2 x Hyper M.2 Socket (M2_2,3 Key M), supports type 2280 PCIe Gen4x4 |
| M2 socket | 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 |
| Raid support | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Power Connector | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| Power Connector | 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |

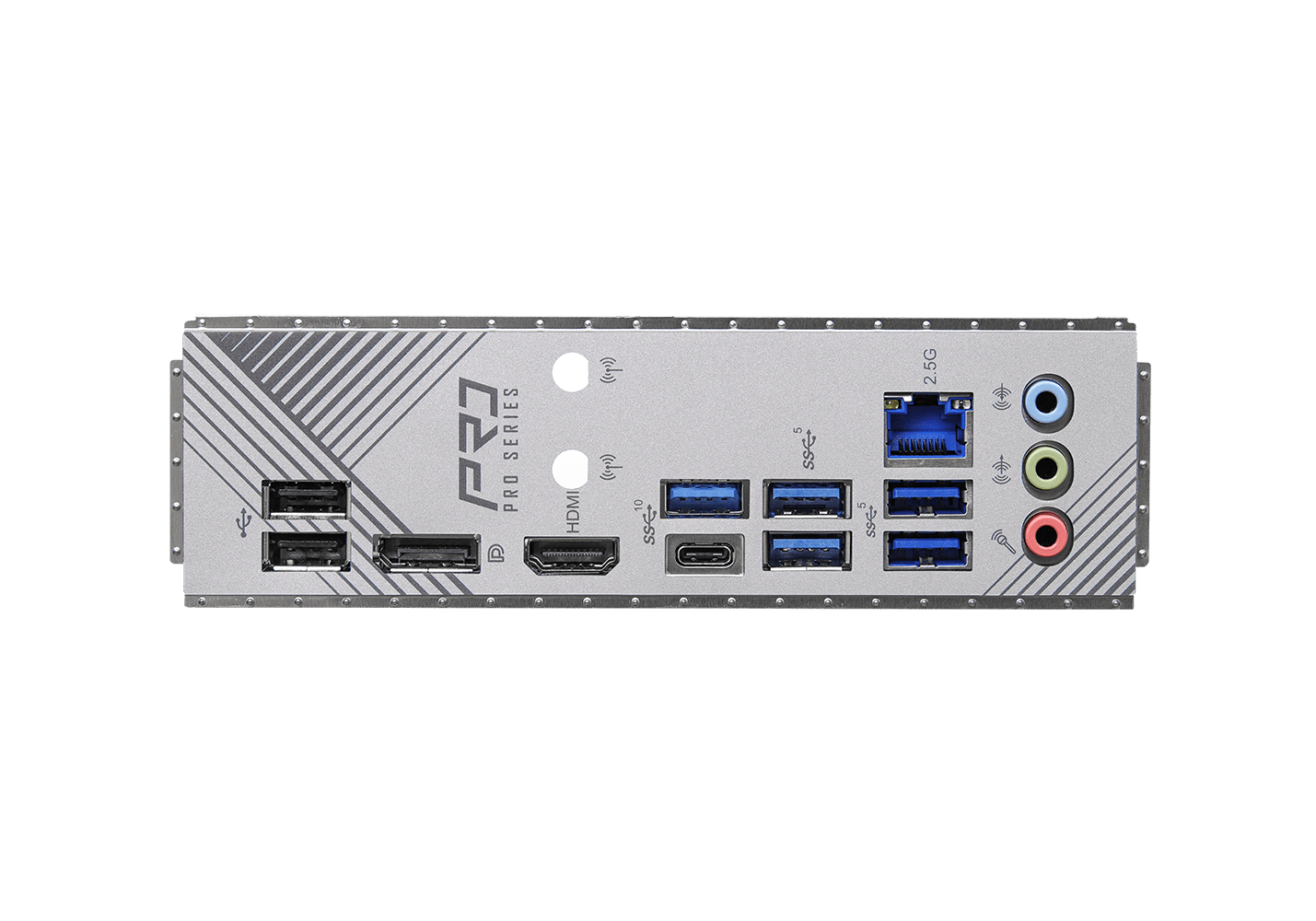

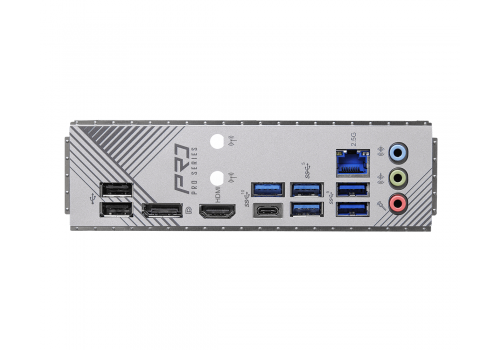

| Connectors | 1 x HDMI port |
| Connectors | 1 x Display Port |
| Connectors | 1 x RJ-45 |
| Connectors | 3 x Audio jacks |
| Connectors | 2 x SMA antenna connectors |
| USB Ports | 1 x USB 3.2 Gen2 Type-C |
| USB Ports | 4 x USB 3.2 Gen 1 |
| USB Ports | 2 x USB 2.0 |
| Dimension | ATX - 30.5 x 24.4 cm |
