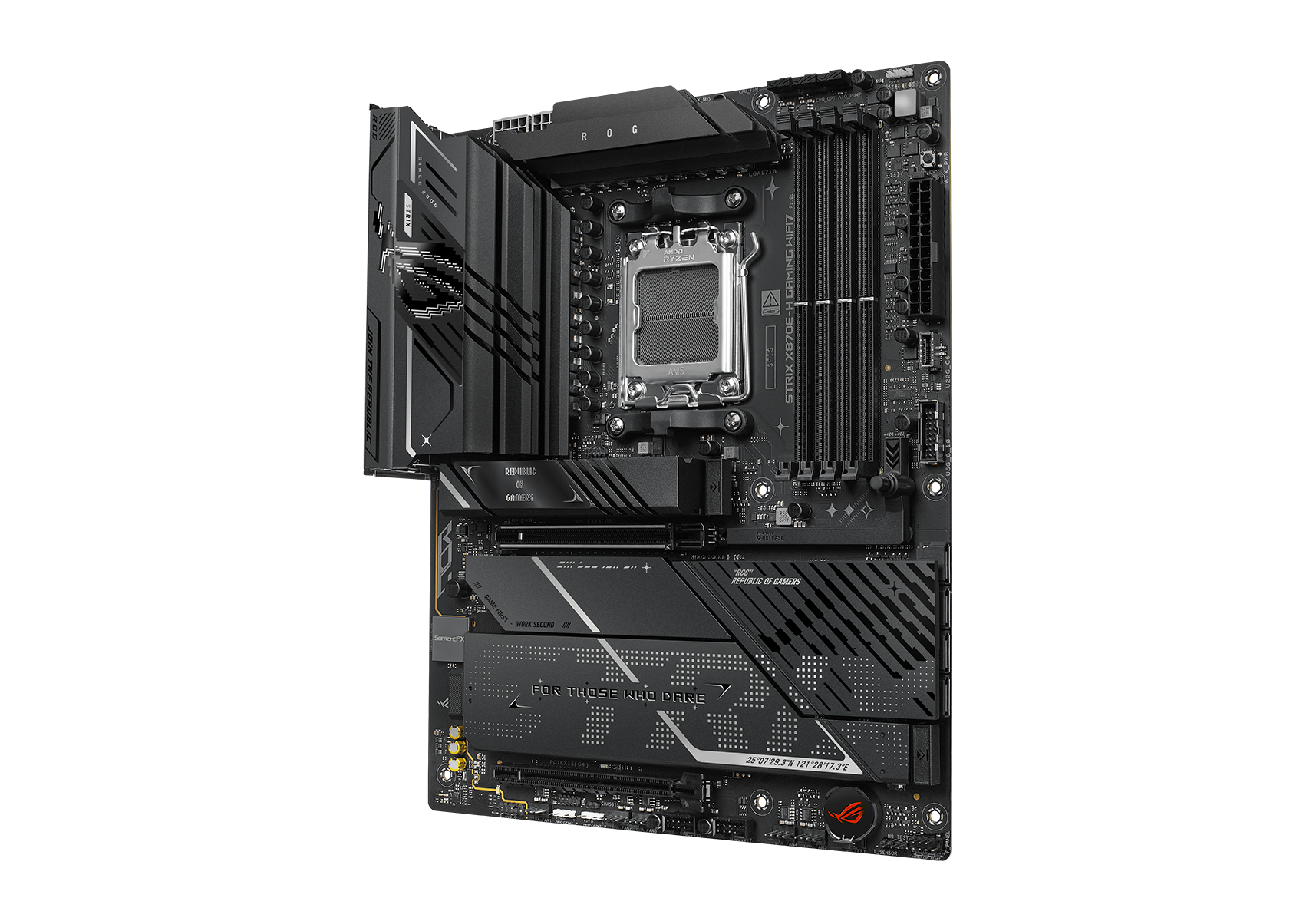

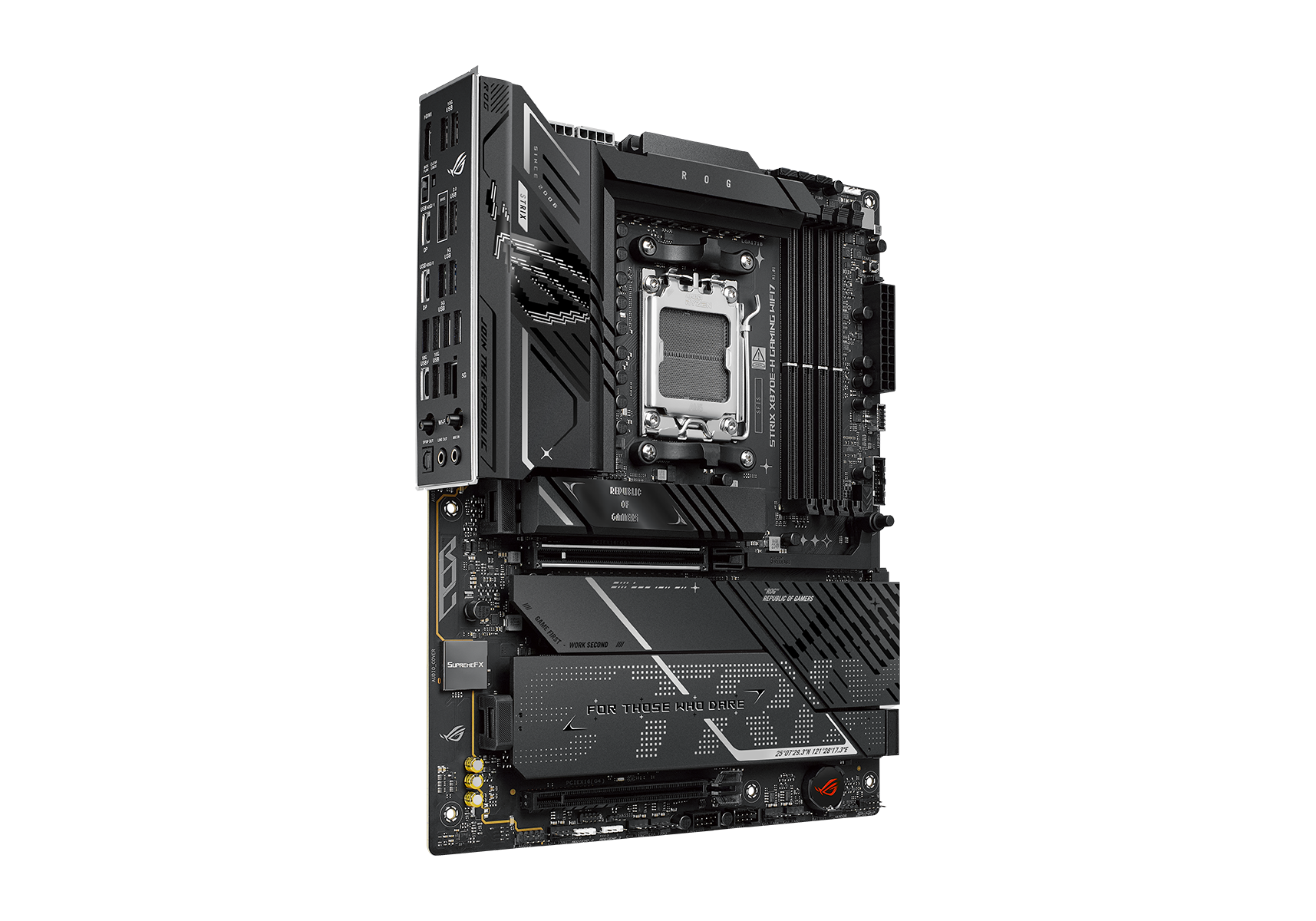

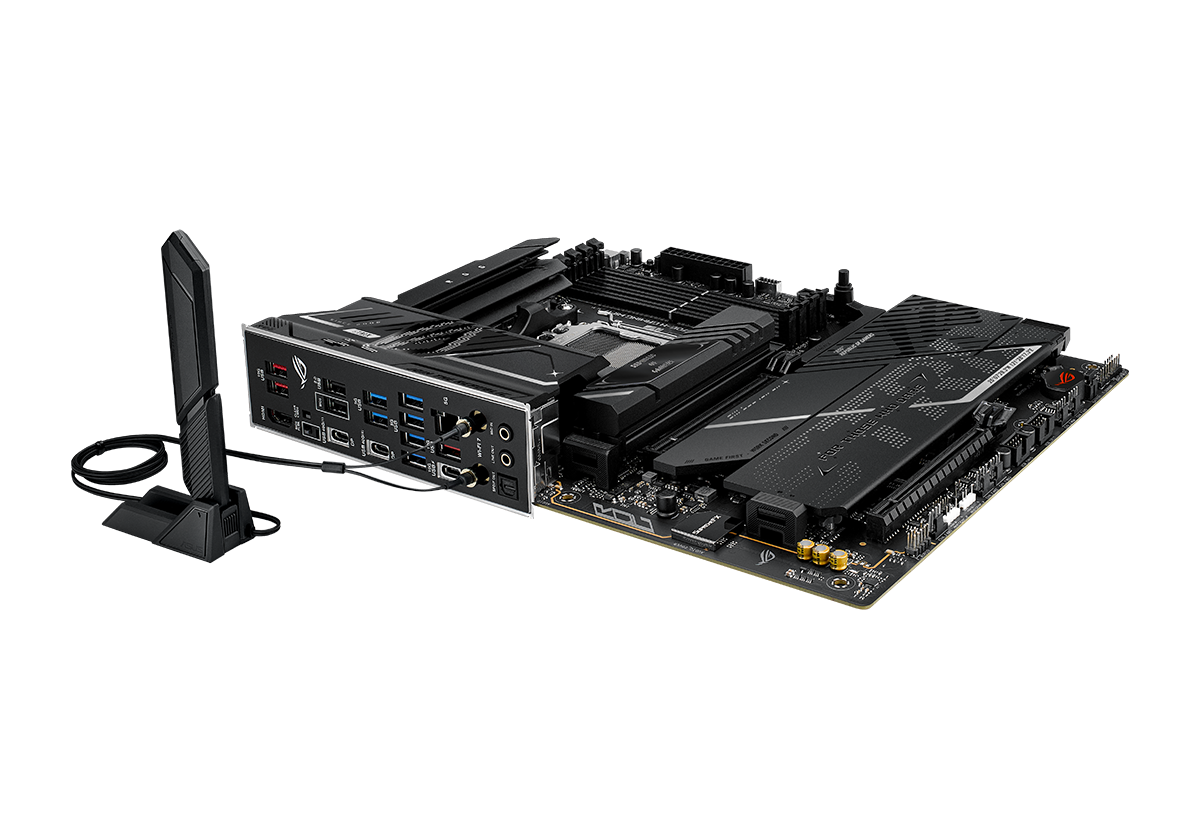

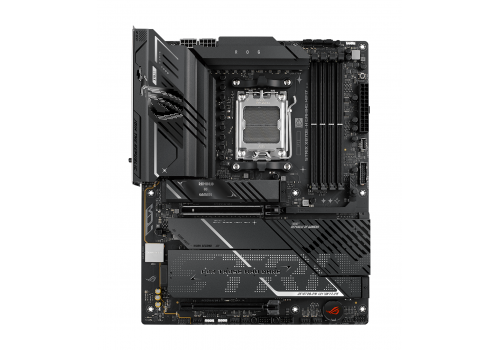

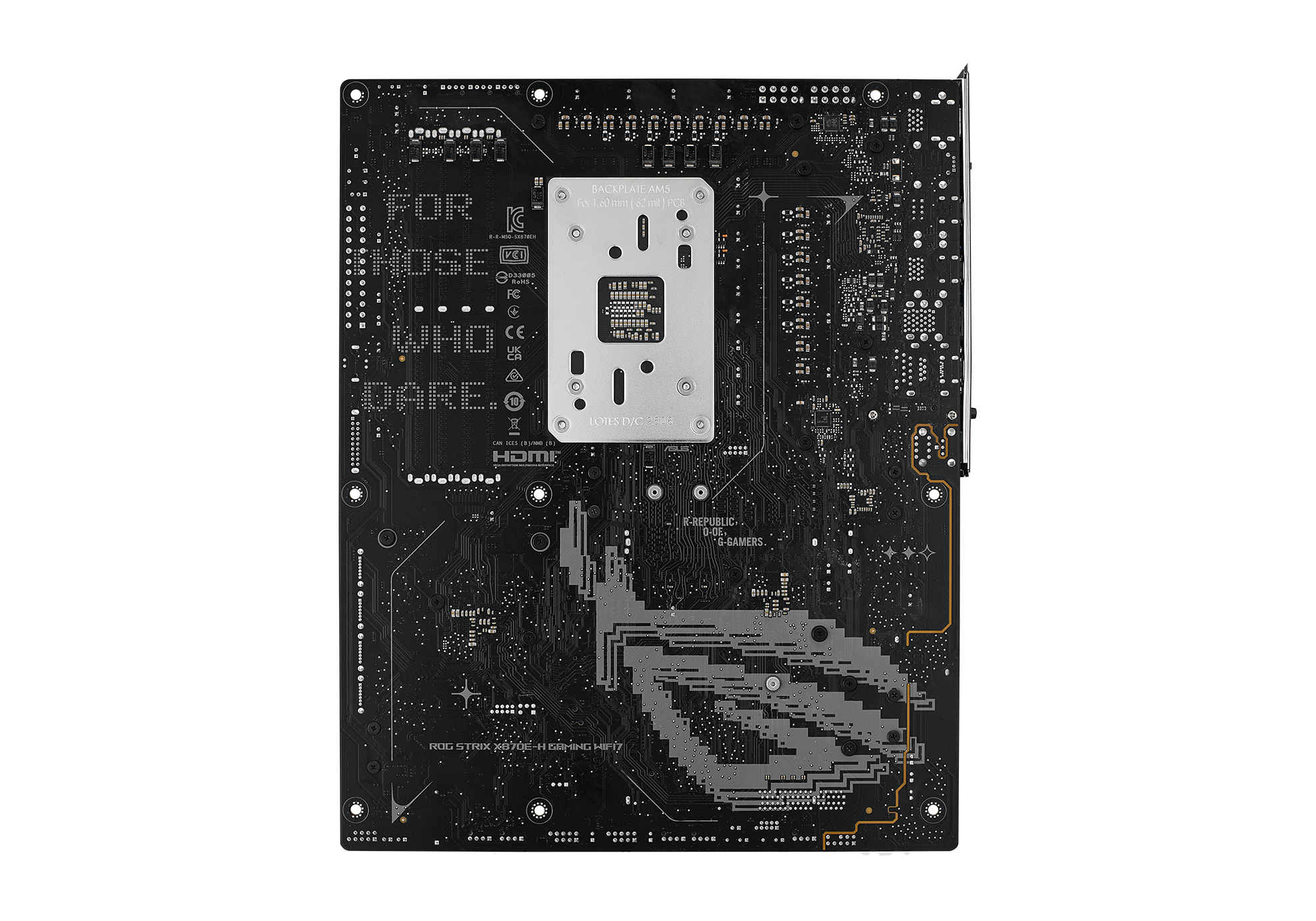

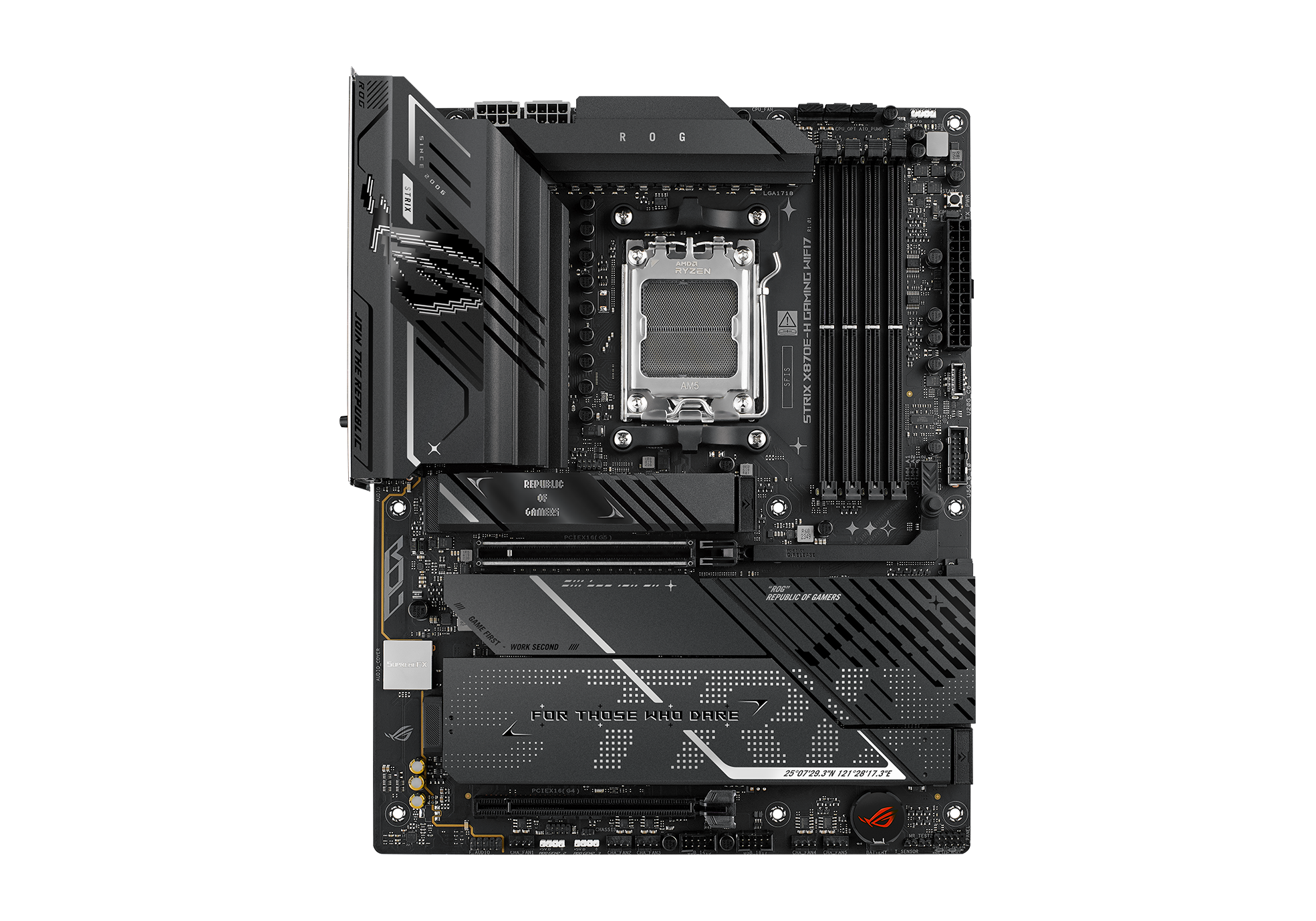

Motherboard ASUS ROG STRIX X870E-H GAMING WIFI7 AM5 DDR5
ASUS-MB-STRIX-X870E-H-WF
Hover on image to enlarge
Delivery
Payment options
Our advantages
12 months warrantyGuarantee for all purchased goods in our online store is 12 months
SMS notificationYou receive SMS messages about your delivery.
Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer and other.
Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!
Description
| Manufacturer | ASUS |
|---|---|
| Model | 90MB1M90-M0EAY0 |
| Reference number | ASUS-MB-STRIX-X870E-H-WF |
| Barcode | 4711636167208 |
| Warranty | 36 |
| CPU Socket | AM5 |
| Chipset | AMD X870E |
| CPU supports | AMD 7000 Series Processors |
| CPU supports | AMD 8000 Series Processors |
| CPU supports | AMD 9000 Series Processors |
| Memory Standard | DDR5 |
| Maximum Memory Supported | 256 GB |
| Number of Memory Slots | 4 |
| Frequency Memory | 8000(OC) MHz |
| Support Dualchannel | Yes |
| Integrated Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Integrated Audio | High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Integrated Audio | Supports up to 32-Bit/192 kHz playback |
| Integrated LAN | ASUS LAN Guard |
| Integrated LAN | 1 x Realtek 5Gb Ethernet |
| Integrated Wi-Fi | Bluetooth v5.4 |
| Integrated Wi-Fi | 2x2 Wi-Fi 7 (802.11be) |
| PCI-E x16 | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| PCI-E x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| PCI-E x1 | 1 |
| Interface Serial ATA | 4 x SATA 6Gb/s |
| M2 socket | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M2 socket | M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M2 socket | M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Raid support | 0,1,10 |
| Power Connector | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| Power Connector | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 1 x HDMI port |
| Connectors | 1 x optical S/PDIF Out connector |
| Connectors | 2 x Аudio jacks |
| Connectors | 1 x BIOS Flashback Button |
| Connectors | 1 x Clear CMOS button |
| Connectors | 1 x Wi-Fi Module |
| Connectors | 1 x Realtek 5Gb Ethernet port |
| USB Ports | 2 x USB 2.0 |
| USB Ports | 6 x USB 5Gbps ports Type-A |
| USB Ports | 3 x USB 10Gbps ports Type-A |
| USB Ports | 2 x USB4 40Gbps ports Type-C |
| USB Ports | 1 x USB 10Gbps ports Type-C |
| Dimension | ATX - 30.5 x 24.4 cm |
| Other | 256 Mb Flash ROM, UEFI AMI BIOS |
